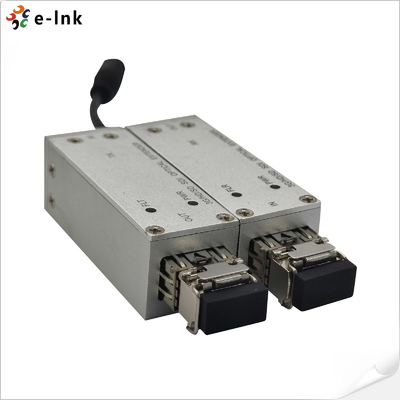

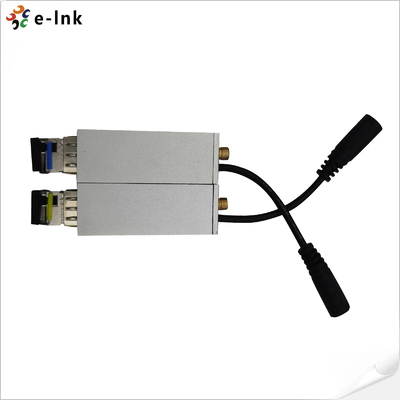

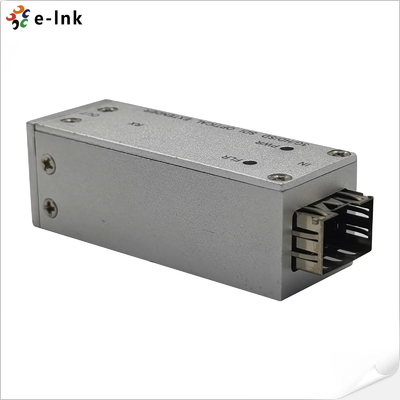

SMB 3G/HD/SD-SDI Optical Micro-Extender
SDI Micro Extender Fiber Optic Overview
This 3G-SDI/HD-SDI/SD-SDI miniature fiber optic extender transmits a 3G-SDI, HD-SDI, SD-SDI,
or DVB-ASI high-definition digital video signal over single-mode or multimode fiber. Compliant with
SMPTE 424M, SMPTE 259M, SMPTE 297M, SMPTE 310M, and SMPTE 305M (SDTI) standards,
it utilizes advanced digital fiber optic transmission technology and requires no adjustments, making it easy
to install and operate. Powered by a low-power 5V power supply and compact in size, it's ideal for broadcast,
video production, and multimedia transmission applications.
SDI Micro Extender Fiber Optic Features
► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary
► Transmission distance up to 120km
► CWDM technology to allow up to 16(18) channels to transmit over one fiber
► Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M,
SMPTE344N
► Compliant with DVB-ASI(EN50083-9)
► Convenient instruction of LED status. Fiber link indicator, power.
► PCB board is environmentally friendly (Pb-free)
► PCB board with multilayer design to ensure stable and reliable signal transmission
SDI Micro Extender Fiber Optic Dimension & Size
SDI Micro Extender Fiber Optic Technical Indexes
| SDI Input |
| Video standard |
SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) |
| Signal standard |
SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
| Resolution |
10 Bit |
| Signal level |
<380mVp-p |
| Impedance |
75Ω |
| Connector |
SMB |
| SDI output |
| Signal level |
800mVp-p±10% |
| Rise/Fall time |
<0.8ns |
| HD-SDI Jitter |
<0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz |
| SDI Jitter |
<0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz |
| Impedance |
75Ω |
| Connector |
SMB |
| Optical Interface |
| SFP |
Simplex LC, 3,125Gbps. ≤120km transmission distance |
| Standard SM wavelength |
1310nm, 1550nm |
| CWDM wavelength |
1270~1610nm, 20nm grid according ITU-T |
| Temperature range |
0~70˚C |
| Electrical |
| Power |
5VDC, 1A |
| Consumption |
<5W |

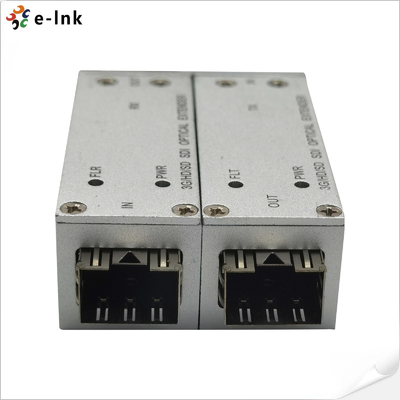

| LED Indicator |
| FLT |
Fiber link status (Transmitter) |
| FLR |
Fiber link status (Receiver) |
| PWR |
Power status |
| Mechanical |
| Dimensions (LxWxH) |
58 x 21 x 20 mm |
| Weight |
100g/pair |
| Casing |
Aluminum Case |
| Mounting Options |
Desktop |
| Environmental |
| Working Temperature |
-20℃～+70℃ |
| Storage Temperature |
-40℃～+80℃ |
| Working Humidity |
0~95% |
| MTBF |
≥100000 hours |
SDI Micro Extender Fiber Optic Ordering Infromation
| Model |
Description |
| LNK-M3G-SMB1V-20 |
SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs |
SDI Micro Extender Fiber Optic Application
