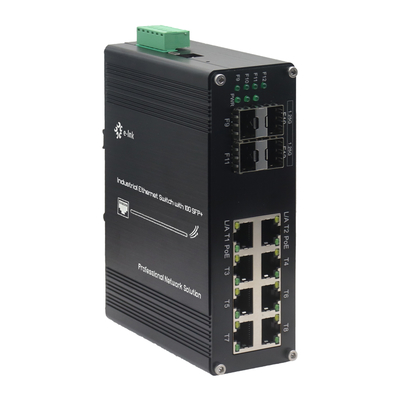

Industrial 8-Port PoE+ Gigabit Switch 4 SFP Ports Hardened for Harsh Environments

Большие изображения : Industrial 8-Port PoE+ Gigabit Switch 4 SFP Ports Hardened for Harsh Environments

Подробная информация о продукте:

Place of Origin:	China
Фирменное наименование:	E-link
Сертификация:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC408GLP-SFP
Документ:	LNK-IMC408GLP-SFP Industria....0.doc

Оплата и доставка Условия:

Minimum Order Quantity:	1PCS
Цена:	USD $179-199
Packaging Details:	Gigabit Managed PoE Switch Standard Export Package
Delivery Time:	2~7 working days
Payment Terms:	Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,L/C,D/A
Supply Ability:	2000pcs per month

контакт

Подробное описание продукта

Connector:	8 x RJ45	Optical Port:	4 x 1000Base-X SFP
Power Consumption:	PoE in Use<240W	Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH):	149 x 114 x 50 mm	Weight:	0.55KG
Выделить:	Industrial PoE+ Gigabit Switch , 8-Port PoE+ Gigabit Switch , Harsh Environments PoE+ Gigabit Switch

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Overview

The LNK-IMC408GLP-SFP Series is a hardened, managed 8-port 10/100/1000Base-T 802.3at PoE+ switch

with 4 SFP fiber ports, designed for industrial and outdoor networking. The device features

eight Gigabit Ethernet ports (auto-negotiating, MDI/MDI-X) and four 1000Base-X SFP slots

(supporting single/multi-mode fibre). Engineered for challenging environments, it delivers exceptional

reliability for IP cameras, wireless access points, and remote network integration with advanced management

and Power over Ethernet (PoE) support (30W per port).

LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Features

Provides 8×10/100/1000Base-T RJ45 ports and 4×1000Base-X SFP optical ports to meet various network access needs
RJ45 port supports full/half duplex mode , auto negotiation and Auto MDI/MDIX function
Compliant with IEEE 802.3af/at PoE standards, ensuring compatibility with a variety of powered devices
Equipped with DIP switch for serial port function configuration
Supports 16K byte jumbo frames to improve data transmission efficiency
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to reduce power consumption
Adopt IP40 grade aluminum alloy shell , which is durable and protective
Wide range 48–57V DC power input , adaptable to various power supply environments
Supports DIN rail installation , facilitating industrial site deployment
Operating temperature range -40°C ~ +80°C (-40°F ~ +176°F), suitable for harsh environments

LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.3af/at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	32Gbps
Max Packet Length:	16K Bytes Jumbo Frame
Address Table Size:	16K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	4 x 1000Base-X SFP
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
PoE output:	30W/port (max)
Power Pin Assignment	(1,2+, 3,6-) (4,5+, 7,8-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	PoE in Use<240W
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

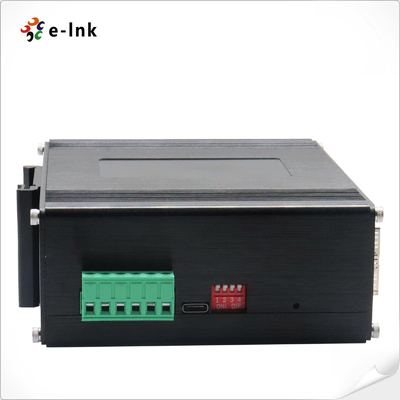

DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Switch serial port mode	ON - Enabled	OFF - Disabled
	SW 2	reserved	ON - Enabled	OFF - Disabled
	SW 3	reserved	ON - Enabled	OFF - Disabled
	SW 4	reserved	ON - Enabled	OFF - Disabled

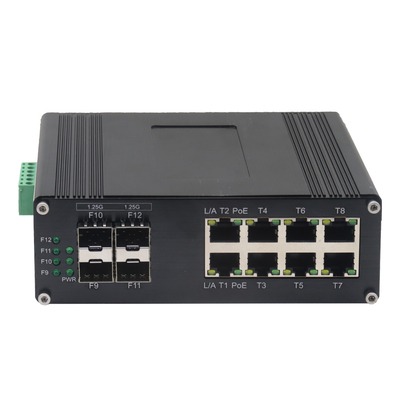

LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
PoE:	PoE Status
Fiber:	Gigabit SFP Port: F9~F12
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case

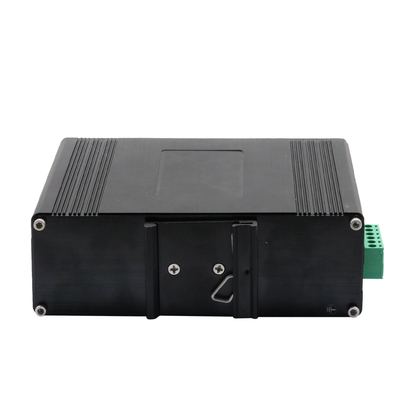

Mounting Options:	DIN-Rail mount
WEB Management Functions
System Status	Device IP
Port Configuration	Port Settings, Port Isolation, Port Priority, Optical Power DDM, Port Rate Limiting, Storm Control, PoE
Layer 2 Features	VLAN Configuration, MAC Address Management, MAC Address Aging, 802.1p Priority Mapping, Queue Scheduling, ACL, MTU Configuration
Port Statistics	Port Counters
Link Backup	ERPS, Port Aggregation, Rapid Spanning Tree
Network Diagnostics	Port Mirroring
System Management	Device Address, User Password, File Management
Default IP Address	192.168.40.253
Default Username	admin
Default Password	admin
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Ordering Information

Model	Description
LNK-IMC408GLP-SFP	Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Application

Industrial 8-Port PoE+ Gigabit Switch 4 SFP Ports Hardened for Harsh Environments 1

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage

caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.

Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
