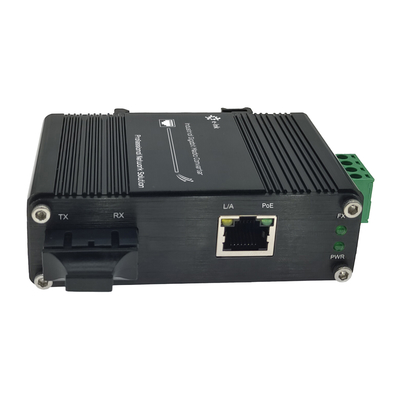

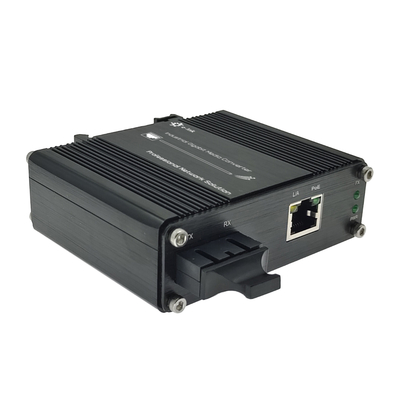

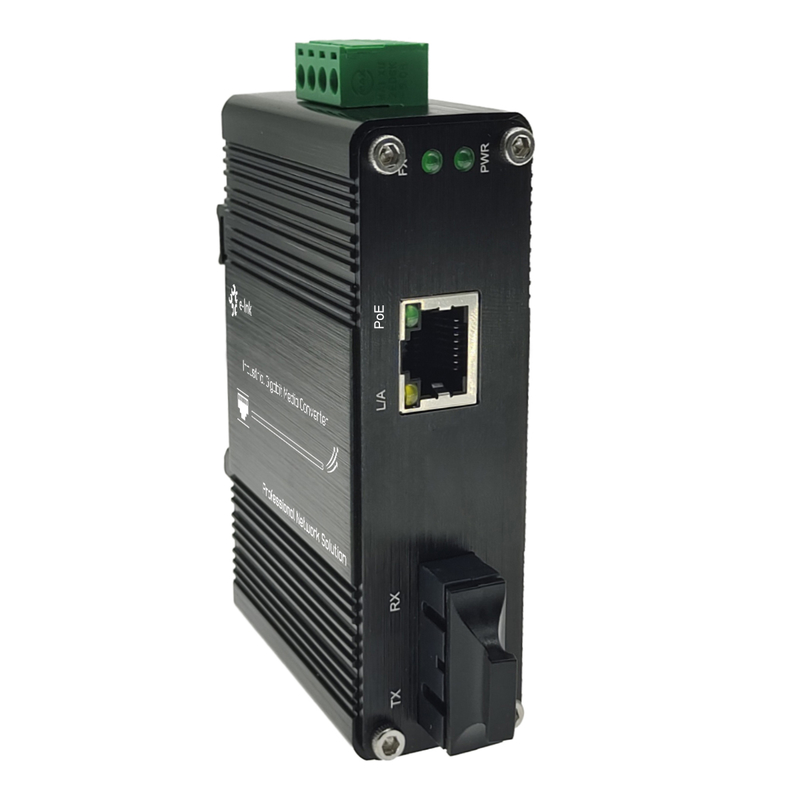

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial Media Converter Overview
The LNK-IMC3012 Series Industrial Gigabit Media Converter is a reliable and efficient solution
for media conversion between 10/100/1000BASE-T copper ports and 1000BASE-X fibre ports.
This product has been designed to withstand challenging environmental conditions.
Its aluminium housing has been engineered to be highly durable, and it operates reliably in
a wide temperature range of -40°C to +75°C, making it suitable for a variety of industrial applications.
This hardened media converter supports both half-duplex and full-duplex modes,
and allows flexible fibre options (100M or 1000M) for greater compatibility with network devices.
The product's mounting options, which include a DIN rail and distribution box, ensure a simple
and secure installation process. This makes it ideal for use in industrial automation, transportation systems
and outdoor networking applications.
Mini Industrial Media Converter Features
The LNK-IMC3012 Series Industrial Gigabit Media Converter presents characteristics:
The device is equipped with one Gigabit Ethernet port, offering a connection speed of 10/100/1000BASE-T RJ45.
It features auto MDI/MDI-X for seamless connectivity.
The 1x Fiber SC Port – 1000Base-X facilitates high-speed fibre transmission and long-distance networking.
The product's flexible network performance supports full/half-duplex and auto-negotiation
for seamless data communication.
This product is energy-efficient and complies with the IEEE 802.3az Energy-Efficient Ethernet (EEE) standard,
which aims to reduce power consumption.
Comprehensive LED indicators provide real-time network status and diagnostics for easy monitoring.
This product boasts a wide power input range of 12~48VDC via terminal block, making it perfectly suited
to industrial power environments.
This product offers versatile mounting options, making it suitable for a range of installation types.
It is compatible with both DIN-Rail and wall-mount installation, ensuring a flexible deployment solution.
This product is characterised by its industrial-grade reliability, which is evidenced by its hardened design.
It has an extended operating temperature range of -40°C to +75°C (-40°F to +167°F), making it suitable
for harsh environments.
Mini Industrial Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
1x RJ45
|
|
Optical Port:
|
1 x SC 1000Base-X
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Power Consumption:
|
3W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
SPD:
|
Ethernet Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC3012
|
Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC
|
|
LNK-IMC3012-20
|
Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC
|
|
LNK-IMC3012-S20
|
Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
