Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch

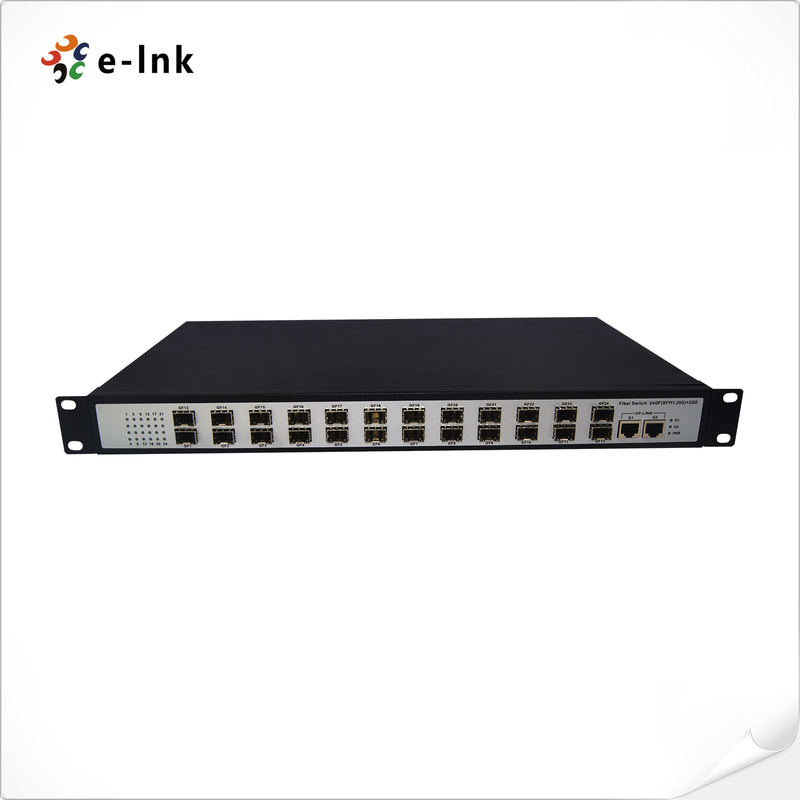

Unmanaged 24-Port Fiber Switch Overview
The 24+2 Port Managed Fiber Switch is a high-density, enterprise-grade networking solution designed
to build robust, future-proof fibre optic infrastructures. Boasting 24 100Base-FX SFP slots, it provides
unparalleled flexibility for fibre connectivity through hot-swappable SFP modules, supporting various
distances and fibre types. It also has 2x 10/100/1000Base-TX copper ports for high-speed Gigabit
uplinks or connecting to critical network devices. Designed for maximum reliability in challenging
environments, it features a broad operating temperature range of -10°C to 60°C, a robust
1U rack-mount aluminium chassis and integrated lightning protection. Advanced features
such as an 8K MAC address table, 1 Mbit frame buffer memory and auto-negotiation/MDI-MDIX
ensure smooth, efficient and stable data transmission. With a wide 110–240 V AC power input
and a solid three-year warranty, this switch delivers exceptional performance and peace of mind
for your network.
Unmanaged 24-Port Fiber Switch Features
► 24 × 100Base-FX SFP ports + 2 × 10/100/1000Base-TX ports
► Supports 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDI-X on TX ports
► Hot-swappable 100BASE SFP modules for flexible deployment
► Supports up to 8K MAC addresses
► 1Mbit frame buffer memory for efficient data forwarding
► Standard 19-inch 1U rack-mount design
► Wide operating temperature range: -10°C to 60°C
► 110~240VAC universal power input
► Rugged aluminum housing with lightning protection design
► Backed by a 3-year warranty
Unmanaged 24-Port Fiber Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX
|
|
IEEE802.3u 100BASE-FX
|
|
IEEE802.3ab 1000BASE-T
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Processing Type:
|
Store-and-Forward
|
|
Max Packet Length:
|
1522 Bytes
|
|
Address Table Size:
|
8K MAC Addresses
|
|
RJ45 Port
|
2*10/100/1000Base-T(X)
|
|
Optical Port:
|
24*100Base-X SFP
|
|
Environmental
|
|
Operating Temperature:
|
-10°C to 60°C
|
|
Storage Temperature:
|
-40°C to 85°C
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
Electrical and Mechanical
|
|
Input Power:
|
110~220VAC
|
|
Power Consumption:
|
25W Max. ( Off-load)
|
|
40W Max. (Full load)
|
|
Dimensions (WxDxH):
|
485 x 235 x 45 mm
|
|
Weight:
|
2560g
|
|
Casing:
|
Metal Case, IP40 protection
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV
|
Unmanaged 24-Port Fiber Switch Ordering Information
|
Item
|
Description
|
|
LNK-FS242
|
Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
