1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender
LNK-B-DVI-1DA1GO DVI Fiber Extender Overview
The LNK-B-DVI-1DA1GO fibre optic extender is a comprehensive, integrated solution for professional,
long-distance AV signal transmission. Seamlessly extending high-definition DVI video up to 1080p alongside
bi-directional RS232 serial data, GPIO control signals and external stereo audio, it operates over
a single fibre optic cable. Its multifunctional design eliminates the need for separate cabling, thus simplifying
installation and reducing costs. Designed for mission-critical environments, it provides exceptional signal
integrity, complete immunity to EMI/RFI interference and the inherent security of fibre optics. Its unparalleled
stability and all-in-one functionality make it the ideal choice for demanding applications in broadcast studios,
command and control centres, large-scale digital signage and sophisticated conference systems.
LNK-B-DVI-1DA1GO DVI Fiber Extender Features
► Transmits bi-directional DVI video signals up to 20km over a single fiber optic cable
► Supports video resolutions up to 1920×1200 @ 60Hz
► Enables bi-directional external stereo audio transmission for high-quality sound
► Supports bi-directional RS232 signal transmission with self-adaptive baud rate
► Provides GPIO (General-Purpose Input/Output) signal support for flexible applications
► Fully compliant with DVI 1.0 and HDCP 1.2 standards
► Auto-matching compatibility with various source and display devices
► Built-in automatic adjustment system ensures smooth, clear, and stable images
► Integrated ESD protection system for enhanced reliability
► Plug-and-play design for quick and easy installation
LNK-B-DVI-1DA1GO DVI Fiber Extender Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
DVI 1.0; HDCP 1.2
|
|
Maximum pixel clock
|
165MHz
|
|
Maximum data rate
|
2.97Gbps
|
|
Resolution
|
1920*1200@60Hz 1920*1080@50Hz
1920*1080@30Hz 1920*1080@25Hz
1920*1080@24Hz
1080I@60Hz 1080I@50Hz
1280*720@60Hz 1280*720@50Hz
|
|
Connector
|
DVI-D
|
|
Impedance
|
100Ω
|
|
Audio
|
Interface
|
3.5mm earphone seat
|
|
Signal type
|
Stereo
|
|
GPIO
|
Interface
|
Industrial terminal
|
|
RS232
|
Interface
|
Industrial terminal
|
|
Signal direction
|
Bi-directional
|
|
Baud rate
|
Self-adaptive, Max:115200bps
|
|
Data bits
|
8
|
|
Optical fiber
|
Interface
|
LC connector
|
|
Fiber type
|
Single-mode single fiber
|
|
Wavelength
|
Single-mode 1310nm
|
|
Interface bandwidth
|
3Gbps
|
|
Transmission distance
|
standard 10km
|
|
Other
|
Power supply
|
The power adapter: DC 12V/1A
|
|
Power dissipation
|
MAX 6W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension (LxWxH)
|
148*115*28mm
|
|
The warranty
|
1-year warranty
|

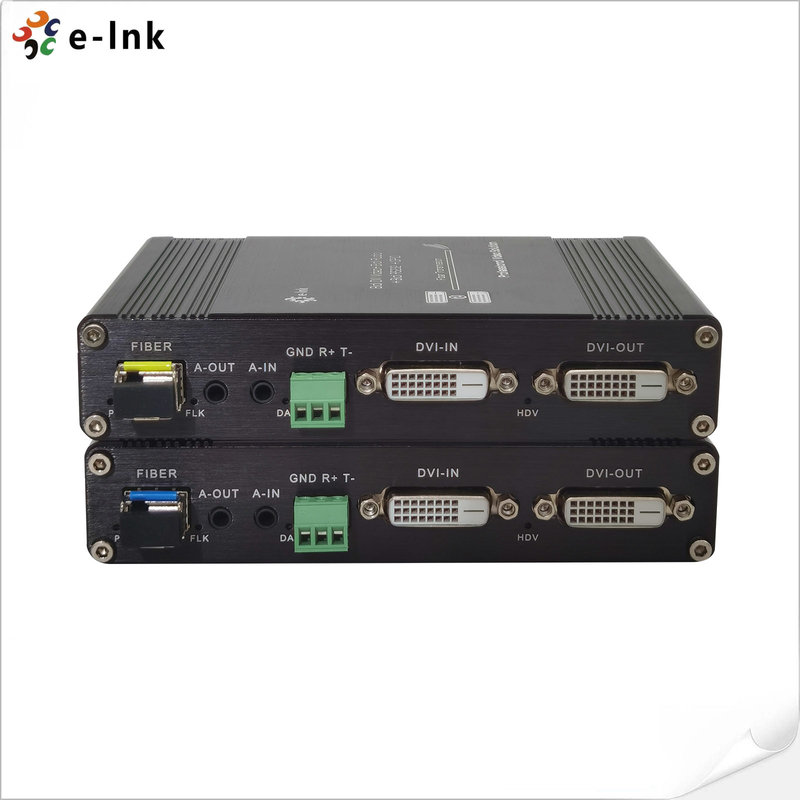

LNK-B-DVI-1DA1GO DVI Fiber Extender Interfaces
LNK-B-DVI-1DA1GO DVI Fiber Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
