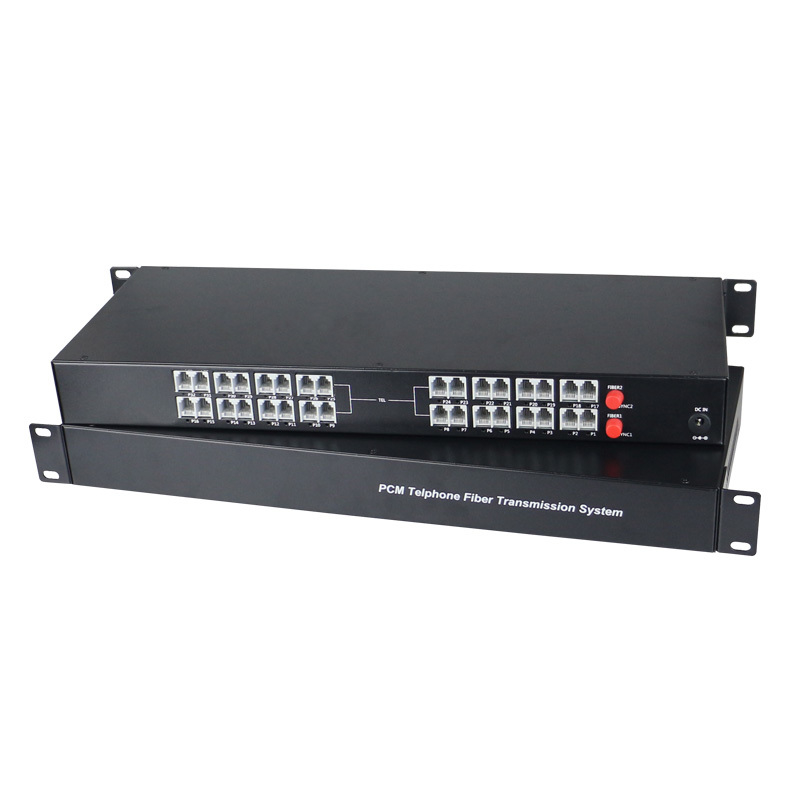

32Ch POTS(FXO/FXS)Telephone over Fiber Mux
32Ch POTS Telephone over Fiber Overview
The E-link 32-Channel POTS over Fiber Converter sets the industry standard for high-density
voice transmission, capable of carrying thirty-two separate telephone lines over a single fiber
strand. This carrier-grade solution maximizes bandwidth efficiency while significantly reducing
infrastructure costs and complexity. Featuring standard RJ-11 connectors, it ensures seamless
integration with existing copper-based telephone systems. The system operates through c
omplementary FXO and FXS units: the FXO interface connects to PSTN or PBX trunk lines
with complete ringing voltage detection, while the FXS unit provides dial tone and connects
directly to end-user telephone equipment. Engineered for exceptional voice quality and total
immunity to electromagnetic interference, this robust extender is ideal for telecommunications
providers, large enterprise campuses, hospital networks, government facilities, and industrial
complexes requiring maximum channel capacity and reliability.
32Ch POTS Telephone over Fiber Features
-
Standard RJ11 telephone interface for universal connectivity
-
32 voice channels with support for Caller ID and Fax functions
-
Dual voice port design (O port & S port):
-
Compatible with FXO/FXS standard telephones
-
Supports point-to-point, cascaded, and distributed networking without SNR degradation
-
Fiber optic power link with LED indicators for real-time system health monitoring
-
Industrial-grade modular design ensures flexible deployment, high reliability, and long service life
32Ch POTS Telephone over Fiber Technical Indexes
|
Product Name
|
32 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM32 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
32 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone, telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 85°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
2.5w(Input:DC12V 3A)
|
|
Power supply
|
External power supply,
Input:AC110-240V 50/60Hz,
Output:12V 3A
|
32Ch POTS Telephone over Fiber Ordering Information
|
Model
|
Description
|
|
LNK-PCM32
|
Analog Telephone to F/O Converter: 32-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
|
LNK-PCM32-E
|
Analog Telephone to F/O Converter: 32-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
32Ch POTS Telephone over Fiber Application
