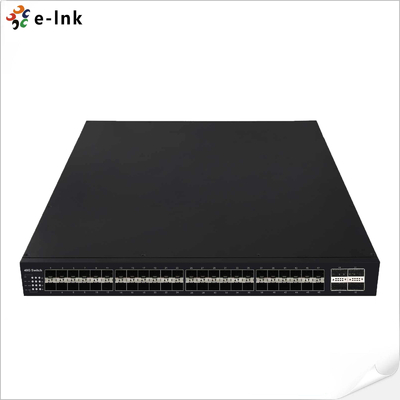

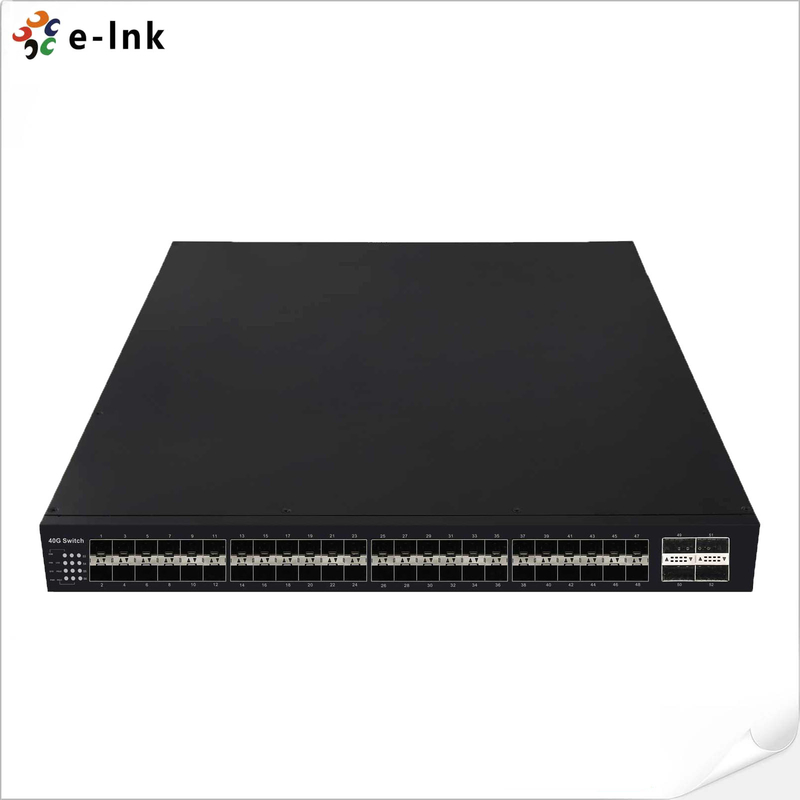

L3 Managed 48-Port 10G SFP + 4-Port 40G QSFP+ Fiber Switch
L3 Managed Fiber Switch Overview
The LNK-FS4804HC-SI 10 Gigabit Data Centre Switch is a high-performance, non-blocking, three-layer
switch designed for modern data centres and cloud networks. With an impressive switching capacity of
650 Gbps and an industry-leading forwarding performance of 852.32 Mpps, it enables
full-speed L2/L2+ forwarding and ultra-low latency. With 48 high-density 10G SFP+ ports
and 4x flexible 40G QSFP+ uplinks, it supports scalable server access, efficient link aggregation
and load balancing. Its 1U modular form factor makes it ideal for top-of-rack (ToR) deployment,
enterprise cores, metro networks and high-traffic environments such as large internet cafés.
L3 Managed Fiber Switch Features
►Delivers 1292Gbps backplane bandwidth, offering industry-leading performance
in a 1U Top-of-Rack (TOR) switch.
►Supports Layer 3 hardware routing with a wire-speed packet forwarding rate of 852.32Mpps,
ensuring full-speed L2/L3 forwarding.
►Equipped with up to 48 10GE ports, providing the highest density in a 1U TOR switch
for high-performance server access.
►Features 4 high-performance 40G QSFP+ interfaces, each supporting breakout into
four 10GE interfaces, enabling flexible network expansion.
►Offers 8 additional 10G Base-T ports, delivering enhanced deployment flexibility.
L3 Managed Fiber Switch Technical Indexes
|
Model
|
LNK-FS4804HC-SI
|
|
Basic Feature
|
|
Fixed port
|
48*10GE SFP+ Ports, 4*40G QSFP+ Ports
|
|
Console port
|
1
|
|
OOB management port
|
1
|
|
Backplane bandwidth
|
1292Gbps
|
|
Packet forwarding rate
|
852.32Mpps
|
|
Jumbo frames
|
9216 bytes
|
|
Chip
|
BCM
|
|
Layer
|
L2 / L3(Available)
|
|
Transfer mode
|
Support store-forward mode and cut-through mode
|
|
IPv4/IPv6 route
|
6k/8k
|
|
MAC address table
|
128K
|
|
Packet Buffer
|
9MB
|
|
VLAN ID
|
4K
|
|
Flash
|
32MB
|
|
Memory
|
1GB DDR3 SDRAM
|
|
CPU
|
PPC Dual-core 800MHz
|
|
Soft Specification
|
|
Security feature
|
IP+MAC+PORT+VLAN binding
ARP inspection
DOS prevention
Port protection
IP source port protection
|
|
VLAN
|
Port based VLAN
802.1Q VLAN
IP based VLAN
MAC based VLAN
|
|
 MAC address table
|
static MAC address table
dynamic MAC address table
|
|
Storm Control
|
Broadcast suppression
Multicast suppression
DLF suppression
Limiting rate
|
|
Traffic Control
|
Half-duplex control based on the back pressure type
Full-duplex control based on the PAUSE frame
|
|
Port Mirror
|
Support port mirroring
|
|
Port management
|
General setting
Port counting
Configuring port
Port trunking
Port-isolation
|
|
QoS
|
IEEE 802.1Q Congestion mechanism
Each port has 8 send queue mapping to 8 802.1p priority
|
|
IP services
|
Ping detection
DHCP Snooping
|
|
Spanning Tree Protocol
|
MSTP(802.1s),STP,RSTP
|
|
Multicast management
|
IGMP Snooping frame
|
|
System management
|
Support SNMP v1/v2
Support Console
Support TELNET
Support WEB
|
|
Remote Upgrade
|
Support version upgrading via web
Support version upgrading via local
|
|
Physical Characteristics
|
|
External Dimension
|
438.48mm*473mm*43.4mm
|
|
Power Supply Features
|
AC:90V～290V DC:-38.4V～-72V
|
|
Power
|
≤230W
|
|
Indicator light
|
Power indicator, system, connection/sending and receiving instructions
|
|
Environment temperature/humidity
|
operating temperature:0°C～50°C(0m～1800m)storage temperature:-40°C～+70°C,relative humidity:5%RH～95%RH,Non-condensing
|
L3 Managed Fiber Switch Ordering Information
|
Item
|
Description
|
|
LNK-FS4804HC-SI
|
L3 Managed Switch: 48-Port 10G SFP +4*40G QSFP+ Port
|
