Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail
Overview

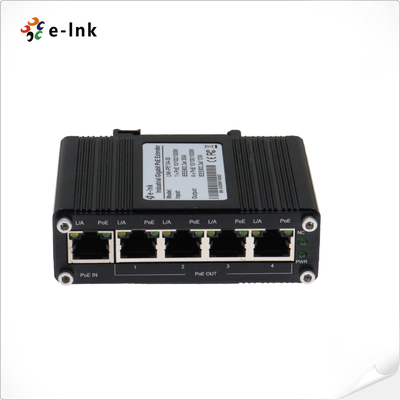

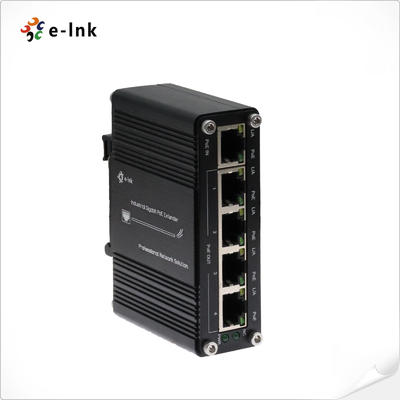

The LNK-IPE104-30 is a high-performance industrial PoE+ extender designed to extend
both data and power over Ethernet. With a 1-Port 802.3at PoE+ input, it can deliver up to
25W of PoE power across 4 output ports, making it ideal for point-to-multipoint PoE
applications. This device supports up to 200m of Ethernet range, and by daisy-chaining
multiple extenders, it can achieve a total PoE+ network extension of up to 400m. With a
robust IP40-rated aluminum case and wide operating temperature range of -40°C to 80°C,
it ensures reliable performance in harsh environments. The LNK-IPE104-30 offers flexible
installation options, supporting both DIN-Rail and wall-mount setups.
Features
1-Port 802.3at PoE+ Input: Provides up to 30W power for 4 PoE output ports.
4-Port 802.3af/at PoE Output: Delivers up to 25W PoE power across four devices
simultaneously.
Extended Ethernet Range: Extends PoE and Gigabit Ethernet up to 200 meters, with the
ability to daisy chain up to 3 extenders for a total of 400 meters.
High-Speed Ethernet Ports: Supports 10/100/1000Mbps Ethernet for fast and reliable data
transmission.
IP40-Rated Aluminum Housing: Durable, industrial-grade protection for harsh environments.
Wide Operating Temperature: Works in extreme temperatures from -40°C to 80°C
(-40°F to 176°F).
Flexible Installation: Supports DIN-Rail and wall-mount installations for versatile deployment.
No External Power Adapter: Powered directly by 802.3at PoE+ source, eliminating the need
for additional power sources.
Technical Indexes
|
Ethernet Port
|
|
PoE Input Port
|
10/100/1000Base-TX RJ45,
IEEE 802.3at PoE Input
Input Power 50~57V DC, Max 30W
|
|
PoE Output Port
|
1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output
Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m
|
|
Cascade connection
|
Support 3 grade
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
|
|
PoE Power Supply Type
|
Mid-span and End-span
|
|
PoE Pin Assignment
|
1/2(+), 3/6(-),4/5(+), 7/8(-)
|
|
Switch Property
|
|
Standards
|
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
|
|
Forwarding Modes
|
Store and Forward
|
|
Transmission Distance
|
100m
|
|
MAC Table
|
8K
|
|
Switching Capacity
|
10Gbps
|
|
Packet Forwarding Rate
|
14.88Mpps
|
|
Flow Control
|
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
|
|
Jumbo Frame
|
10K bytes
|
|
Environment
|
|
Surge Immunity
|
6KV, Standard: IEC6000-4-5
|
|
ESD Protection
|
6KV 1a Contact Discharge Level 3,
8KV 1b Air Discharge Level 3,
Standard: IEC61000-4-2
|
|
Protection Level
|
IP 40
|
|
Operating Temperature
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature
|
-40°C to 85°C (-40°F to 185°F)
|
|
Operating Humidity
|
0~95% (non-condensing)
|
|
Physical Parameter
|
|
Dimensions (WxDxH)
|
95 x 70 x 30 mm
|
|
Weight
|
0.25Kg
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
DIN-Rail / Wall-mount
|
|
Certifications
|
|
Certifications
|
CE, FCC, RoHS
|
Ordering Information
|
Model
|
Description
|
|
LNK-IPE104-30
|
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender
|
|
Mounting Options
|
Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
Application
Dimension
